20.0 -- Dashboards for Data Science

Building a web-based dashboard for scientific python programs

It's often useful to provide a graphical and interactive front-end for software, either for running the software itself or for visualizing results.

Streamlit cheatsheet <- Useful

Install streamlit with conda

If you are using conda environments, make sure you are in the environment for our class, and then install streamlit:

conda install -c conda-forge streamlit

gradio is another nice, lightweight python dashboard gradio is newer than streamlit, but it targets the same idea: making interactive web interfaces for python data science tools super fast and easy.

We won't be using this but if you are curious you should check it: gradio.app

Testing the install and kicking the tires

Out-of-the-box streamlit comes with a demo that you can run to test if the install succeeded. Type this command and it should open a new tab in your web browser.

streamlit hello

Think about the features in the demo with respect to how you might use things like this for your own project. For example, the DataFrame demo demonstrates functionality for providing interactive visualization wrapping a pandas dataframe. And the Plotting demo has animated simple a simple line chart but it's animated so it's more fun. And the code for each demo is provided on the same page, so you can copy/paste and start tweaking it for your own needs.

You can already see that streamlit provides many basic UI primitives like:

Streamlit HelloWorld (Quickstart)

The first thing we need to know is that Streamlit doesn't play well with jupyter notebooks, so we will need to develop our dashboards by coding python files in sublime text. I'm going to open my hack-5-python repository in sublime, because we'll be using some code from this later in the exercise. Create a new file in this repo called sl-wf-sim.py and open it. As usual we'll start with imports:

import streamlit as st
import pandas as pd
import numpy as np
import time # <- We'll need this later as well

Next we'll add a title text object:

st.title('Hello :earth_americas:')

Running the streamlit dashboard app

Streamlit dashboards run as a 'server' on your laptop, so in order to run this simple example you need to open a terminal, navigate to the directory your file is in and type:

streamlit run sl-wf-sim.py

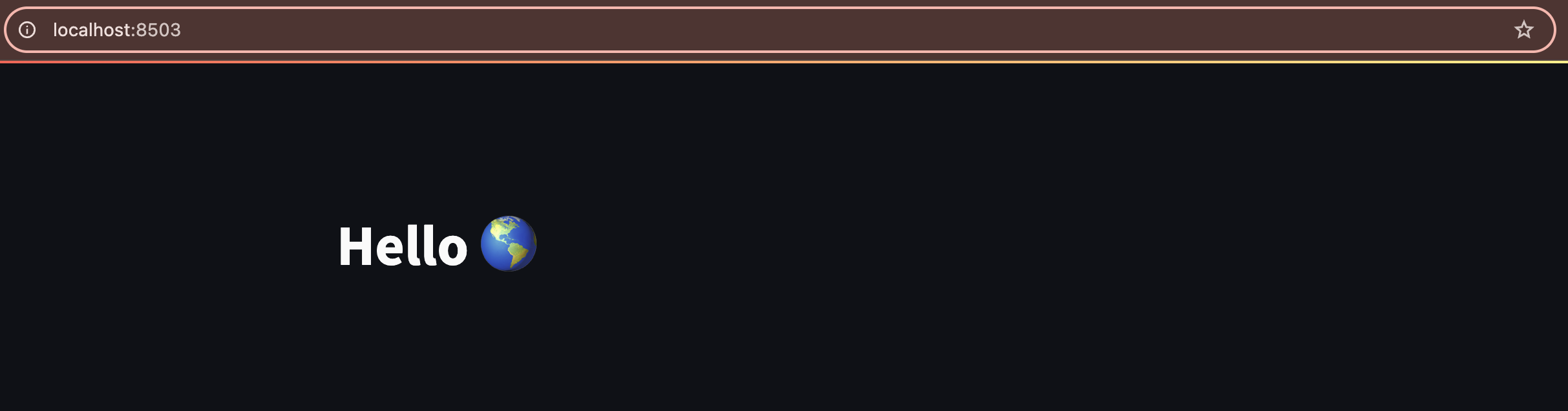

sl-helloworld

Very cool! It's incredible how simple it is to go from zero to web site with streamlit. Ok, lets close this simple example and try to do something more interesting. To quit the dashboard go to the terminal and type Ctrl+c.

Interactive Wright-Fisher Simulation

The good-old Wright-Fisher simulator that we implemented within the Population class will be a good test-case for developing a data science dashboard. It has a simple, intuitive output (changes in allele frequency through time) that can be visualized, and it has a small number of parameters that we can make sliders or input boxes to manipulate.

Importing our wf Population class

We will pull in the wf simulation code we wrote several weeks ago to populate the dashboard with something interesting. NB: If you are anything like me, your most recent file with wf code was in wf-script.py. Python does not like dashes (-) in module names so if we want to import from this file we need to rename it to wf_script.py. This is my bad, I should have named it this in the first place. You can rename this file by using git mv:

git mv wf-script.py wf_script.py

Then commit/push this change. Once you fix that you can import the Population class from this file. Also change the title of the dashboard so it makes more sense.

from wf_script import Population

st.title('Simple Wright-Fisher Simulation of Genetic Drift')

Plotting allele frequency through time

For this exercise we will do something a bit different. We will give you the 'bare bones' of the dashboard for the wf simulation, and then we'll give you a whole bunch of challenges to try to implement on your own (which you can do in any order you please).

For now, here is the basic code to simulate wf and use streamlit LineChart to show the change through time.

# Create a new Population
# As a reminder these are the default values for population size (N)
# and initial derived allele frequency (f).
#   N=10, f=0.2
p = Population()

# Initialize the chart with the initial allele frequency of the derived
# allele. `line_chart` expects a list, so we must wrap `p.f` in square
# brackets to pass a list
chart = st.line_chart([p.f])

# Initially we'll run a loop 50 times
for i in range(1, 50):
    # Step 1 wf generation
    p.step(ngens=1)
    # Calculate the current derived allele frequency
    freq = np.sum(p.pop)/len(p.pop)
    # Update the chart to add the current allele frequency
    chart.add_rows([freq])
    # sleep for a small amount of time so you can watch the animation
    time.sleep(0.05)

# Add a button to rerun the simulation
st.button("Rerun")

Save & Execute

Save your file now and execute it in the same way as you did before, and you should see something much more involved pop up. And it animates! Leave this tab open and running for now and don't close it unless you know you need to.

Modifying the code and updating the dashboard

Now that you have got your base dashboard code it's time to start modifying it to make it do more stuff. Start by changing the value in the range() call from 50 to 60. Save the file and go back to the tab with the streamlit app in it. You should see that the menu on the top-right of the screen has slightly changed:

sl-helloworld

It has detected the change of the source code and is suggesting to Rerun the code to incorporate the changes. This will be very useful for the purpose of making development easier.

Challenge section

Now here are a bunch of challenges to implement, to explore the features of the streamlit library and to make our WF dashboard more interactive.

Challenge: End the visualization when it stops being 'interesting'

Notice that if the derived allele is fixed or lost (i.e. the allele frequency goes to 0 or 1) then the simulation stops doing anything interesting and the line will get 'stuck' on one or the other of the boundaries. This is desired behavior, but maybe we want to have the simulation just quit when it detects this.

Hint Remember that the `Population` class has the attribute `state` which you can check to see if the derived allele still segregates. There are other ways to do it as well.

Challenge: Add a status message

It might be helpful to have a very simple and immediate summary of the state of the simulation, rather than having to look at the plot. In this challenge you will add a status message in the sidebar that reports the state of the Population object. Follow the example of the status_text object in the Streamlit Plotting demo.

Challenge: Add a slider to set number of wf generations to simulate

By default the simulations run for 50 generations, but this is a good value that we might want users to be able to manipulate. Follow the example in the streamlit Animation demo of how to implement and fetch values from a Slider docked in the sidebar. Sliders take 4 arguments: A label; min value; max value; default value; and step size.

Challenge: Add a progress bar

It's also useful to have a progress bar to show the progress of the simulations. In this challenge you'll implement a progress bar to track the progress of the simulation. Follow the example of the progress_bar variable in the Plotting demo.

Challenge: Add sliders to set N and f parameters for the Population

Add sliders in the sidebar to allow users to set the N and f values for the population. Follow the examples that use st.sidebar.slider in the Animation demo. See the generations challenge above for details about slider parameters.

Deploying streamlit apps

Now you have a pretty cool and functional interactive app! The next step might be to deploy this app so other people can use it. Streamlit has built-in functionality to do this in a very simple way with the Streamlit community cloud. Before continuing you'll need to add/commit/push the streamlit dashboard python file we've been modifying. You'll notice that your dashboard has a Deploy button in the top-nav menu. If you click this button you'll see 3 different options, one of which is the community cloud. You can click Deploy Now and it will take you to the website where you will register your account (you can sign in with your CUID using the google auth method). After you register and connect your google account and allow streamlit permission to access your github you'll see a setup page which you can just click through. After you go through this process it will access your github, point the streamlit server to your dashboard .py file, load it up and create an endpoint that you can then share with other people! Here is my WF sim dashboard running in the streamlit community cloud: wf_sim dashboard

Pretttyyyyyyy cooooooooolllllllll!!!!!!!!!!!!

Wrapping up

With any remaining time, you may think about you could implement a dashboard for your class project, or you can try copying/pasting and modifying one of the examples dashboards from the streamlit hello demo.
